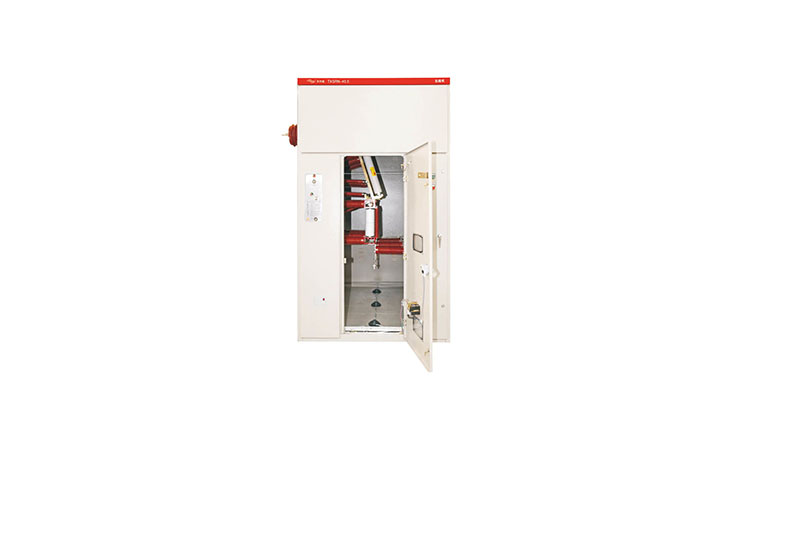

TXG(R)N-40.5 Indoor AC high voltage vacuum load switch-fuse combination

Product overview

TXG(R)N-40.5D/T1250-20 indoor AC high voltage vacuum load switch (hereinafter referred to as：vacuum load switch) and TXGRN-40.5D/T100-31.5 indoor AC high voltage vacuum load switch- fuse combination apparatus (hereinafter referred to as composite apparatus ) are designed and developed by our company according to GB3804 and GB16926. They are suitable for AC 50 Hz, rated voltage 40.5kV network. And they are designed for wind power solar power 35kV system. They can be used for wind power tower wall installation, and can also be used as a separate electrical unit is used in 40.5kV power system or box substation. The structure of the product is scientific and reasonable. The switch spring operating mechanism adopts the two-stage transmission mechanism which has been developed by our company and obtained the patent of national invention. The operation is simple and reliable.

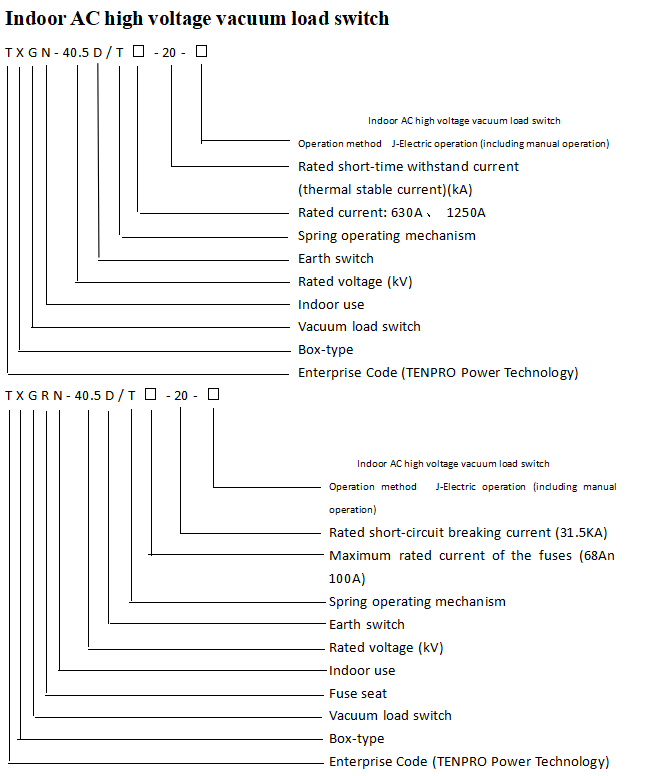

Model Description
