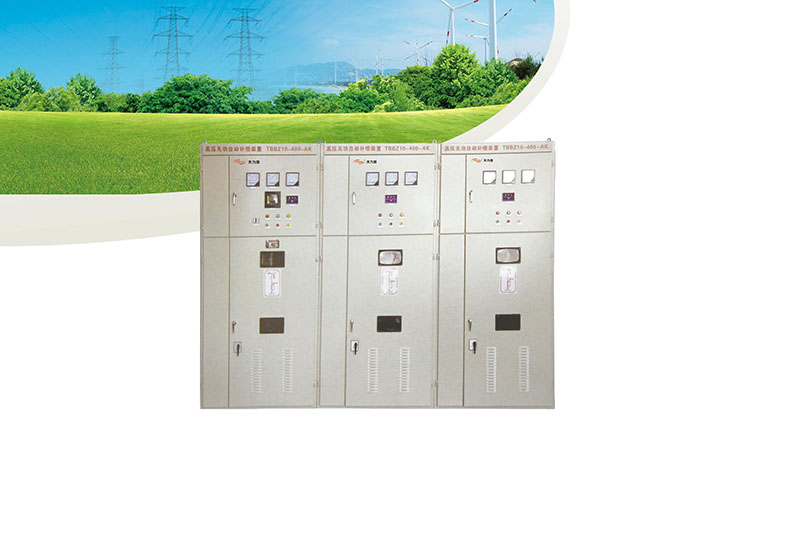

TBBZ High voltage reactive power automatic compensator

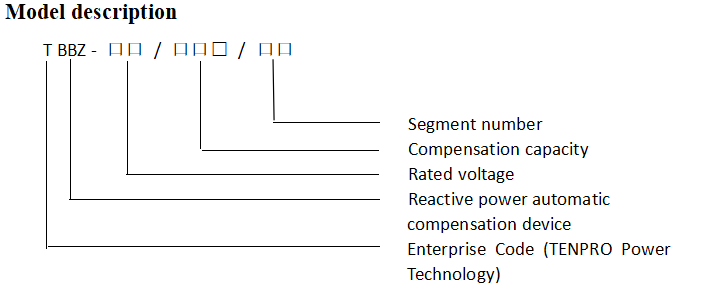

Product overview

TBBZ high-voltage reactive power automatic compensation device: it is suitable for the powerless automatic tracking compensation of 35kV 10KV (6kV) busbar in 220kV 110KV / 35KV substation. It is mainly used in the three-phase AC power system of 3-35KV. The load fluctuation is large, but the centralized compensation still can not meet the requirements of the system. Often overcompensation or undercompensation is caused. The device can detect the reactive power needed by the system in real time, then compare it with the set value, carry on the automatic intelligent switching operation, make the reactive power of the system achieve dynamic balance, in order to improve the power factor of the system, stabilize the system voltage, reduce the wastage, and save electricity cost.

Main technical parameter 10KV/6KV

Characteristic

1.System rated voltage: 12 KV;

2.Large capacity: 10, 000 Kvar. / 25, 000 Kvar.

3.The maximum number of groups was: 8 groups;

4.The electric rent of the same circuit to ground insulation: ≥ 1000MQ;

5.1min Industrial Channel Voltage-proof: 42KV;

6.Anti-jamming performance: can withstand the frequency of 1MHAZ voltage common mode 250V, differential mode 1000 attenuation shock wave pulse interference test, can withstand severe grade 1 level of vibration, shock response test;

7.Mechanical life: 50000.

Environmental conditions

1. Ambient temperature:-25~45℃，the average temperature within 24 hours is not more than 35 ℃;

2. Relative humidity: not exceeding 85%;

3. Atmospheric pressure: 80 / 110Kpa;

4. Altitude: ≤ 2000m

5. Wind speed: ≤ 35 m;

6. Working position: deviation from reference position not exceeding 5 °

7. Installation site: No explosive hazardous media shall be allowed in the place of use, and the surrounding environment shall not contain gas and conductive media of degree metal and annular insulation. Do not allow full water vapor and the presence of serious mold.

Main technical parameter 35kV

Characteristic

1. System rated voltage: 40.5 KV;
2. Maximum rated capacity: 12Mvara~100Mvar.
3. Rated current: 5.8A-500A;
4. Equipped with reactance: 0.1 N13;
5. 1min power frequency withstand voltage: 95 KV;
6. Rated frequency: 50 Hz:
7. Phase number: three phases
8. Maximum operating current：1.35 times rated current for continuous operation
9. Working current: AC85V~ 265V DC 220V ±20%

Environmental conditions

1. System rated voltage: 40.5KV
2. Rated maximum capacity: 12Mvar~100Mvar
3. Atmospheric pressure: 80-110Kpa
4. Altitude: ≤ 2000m
5. Wind speed: ≤ 30m/s
6. Working position: Deviating from the benchmark location is not more than 5 °
7. Installation site: no explosive hazardous media shall be allowed in the place of use, no corrosive metal and damaged insulation gases and conductive media shall be contained in the surrounding environment, do not allow full water vapor and the presence of serious mold.
